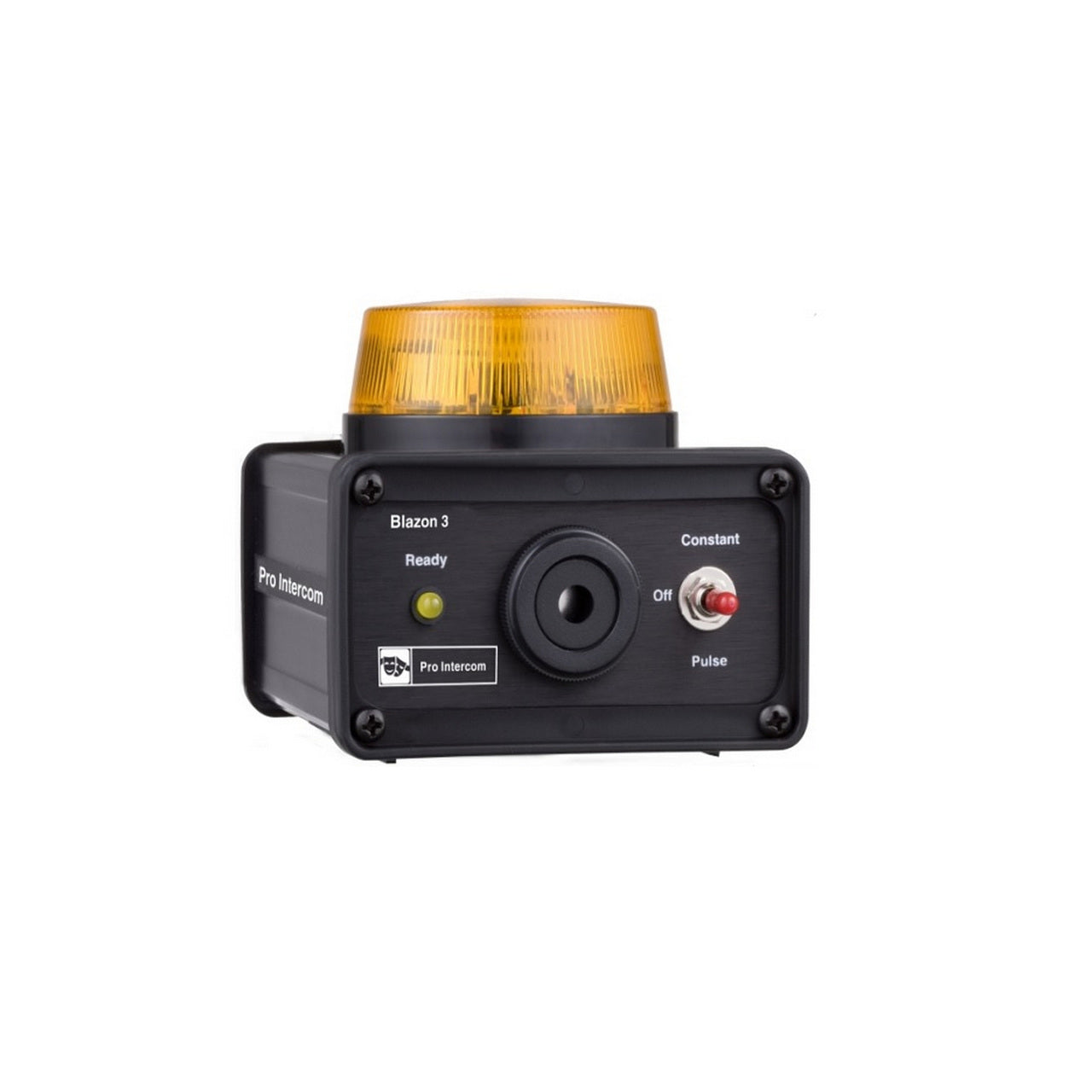

Pro Intercom Blazon3 Top Mounted Strobe Light and Annunciator

The Blazon3 provides the combination of a xenon lamp with an audible annunciator (90/85dB). Whenever any signal lamp button on any station in the same circuit is pressed, the Blazon3 will be activated. The xenon lamp is permanently connected. The audible may be set to constant, pulsed or off.

Key Features

• The audible annunciator may be switched among constant, pulsed, and off
• Circuitry is provided to sustain the Blazon 3 for 4 seconds after being triggered
• The xenon lamp has a flash rate of 2Hz, providing 8 flashes per cycle
• The Blazon 3 is connected to the head set inter com system in the same manner as a belt pack

Technical Specifications

Supply voltage
24 ~ 30 VDC nominal
Switch-on voltage
8 Volts minimum
Switch-off voltage
5 Volts maximum
Switch-on time
75 milliseconds
Switch-off time
4 seconds
Flash rate
2Hz / Flash power
0.75 joules
Input impedance
1 Meg Ohm
Power consumption
Ready – 21.1mA
Strobe only – 56 mA Strobe & Annunciator – 108mA
Size
3.70×4.30×5.80 in. (93.98×109.22×147.32 mm)
Weight
20oz. (0.567Kg)
