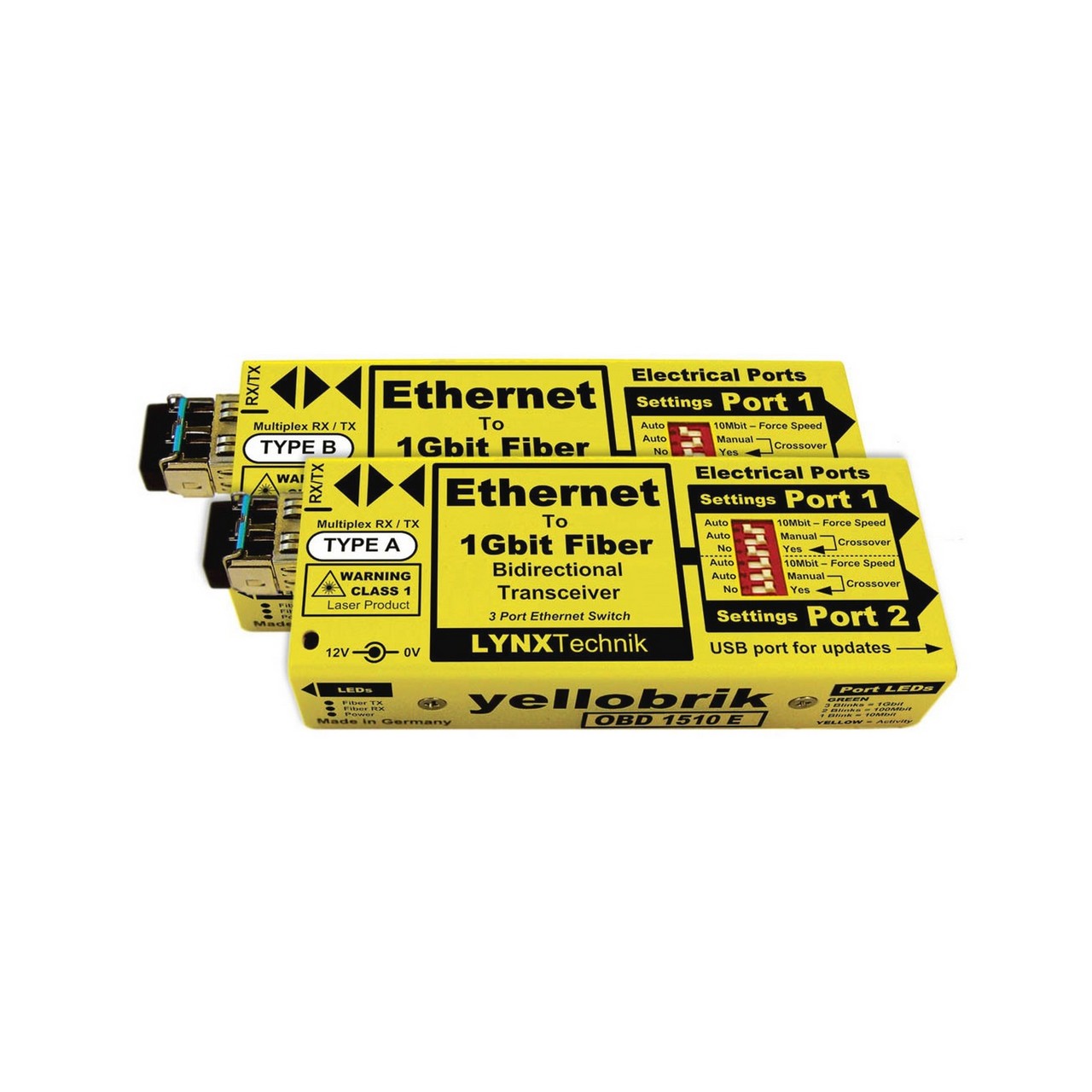

LYNX Technik OBD 1510 E Yellobrik Bidirectional Ethernet to Fiber Extender Pair

The LYNX Technik OBD 1510 E yellobriks form a small WDM closed loop system designed to extend the reach electrical Ethernet signals over a single bidirectional fiber optic link. The single bidirectional fiber link operates at a constant 1Ggbit speed.

Key Features

• Pair of modules supplied (one Type A and one Type B)
• Bidirectional send and receive over single fiber link
• Supports standard Ethernet inputs up to 1Gbit
• Closed loop WDM fiber system
• Auto (10/100/1000) electrical port speed detection
• Manually force 10Mbit electrical speed
• Fiber connection speed always 1Gbit
• Auto or manual electrical crossover selection
• Distances up to 10km (6.2 miles) over singlemode fiber

Technical Specifications

Ethernet
2 x Ethernet ports, RJ45 Connectors.
10 BaseT UTP category 3,4 or 5 cable up to 328ft/100m (2 pairs)
100 BaseT XUTP category 5 cable up to 328ft/100m (2 pairs)
1000 BaseT XUTP category 5 cable up to 328ft/100m (4 pairs),
Auto detect bit rate (10/100/1000), or force to 10Mbit for each port (selectable),
Automatic crossover detection or force manually for each port (selectable),
Port speed / activity LED indication (next to Ethernet port).
Fiber Optic
1 x fiber optic I/O port (bidirectional)
Simplex (single mode) using LC/PC connection, WDM using 1310nm and 1550nm wavelengths Optical budget = 18dB, Fiber TX active and RX active LEDs on side of module, Max. distance 10km (6.2 miles – Singlemode).
Power
+12VDC power supply (included), Supports external power input from 9 – 14 VDC, Power LED on side of module.
Size
105mm x 40mm x 22mm (4.13″ x 1.57″ x 0.86″).
Includes
2 x OBD 1510 E modules (Type A and Type B), 2 x 12V DC power supplies, wall mounting brackets and plastic transport case.
