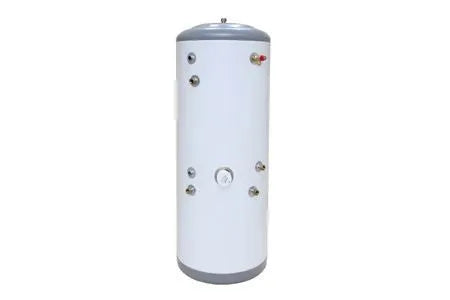

The Quick Recovery (QR) cylinder range comprises of high efficiency hot water storage solutions which can partner with all of Grant’s heat source appliances. All the QR cylinder models are suitable for use as unvented or open vented cylinders, and are designed to suit multiple installation scenarios. When homeowners choose a QR cylinder, they can be assured that their heating system is able to operate as efficiently as possible.

25 year material guarantee on cylinder shell (subject to full Terms and Conditions)
Suitable for installation air source heat pumps, solar thermal systems, and oil boilers
Available in sizes from 150 litres up to 300 litres
Manufactured using a high quality duplex stainless steel shell, large stainless steel internal coils, and quality external finish with organic Estectic Tex paint
Feature factory-fitted 3kW immersion heater
Highly efficient with large internal coils and supplied with high level of insulation to ensure low standing heat losses
All models have a Global Warming Potential (GWP) of 3.1 and Ozone Depletion Potential (ODP) of 3
Straightforward to install

Specifications

<table

150L 180L 210L 250L 300L Weight Empty 45kg 50kg 54kg 62kg 68kG Weight Full 181kg 217kg 251kg 299kg 357KG Height 1117mm 1305mm 1491mm 1744mm 2054mm Width 550mm 550mm 550mm 550mm 550mm Depth 550mm 550mm 550mm 550mm 550mm Pressure Regulator 3bar 3bar 3bar 3bar 3bar Immersion 3kW 3kW 3kW 3kW 3kW Expansion Vessel 19ltrs 19ltrs 19ltrs 19lts 24ltrs Coil Rating Primary 32kW 32kW 32kW 32kW 34kW Standing Heat Loss 1.41kw/24hrs 1.61kW/24hrs 1.79kW/24hrs 2.02kW/24hrs 2.24kW/24hrs Energy Rating C C C C C
